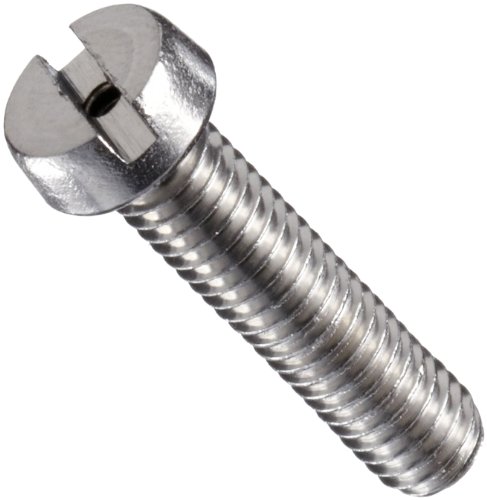

Stainless Steel 18-8 Machine Screw, Vented Cheese Head, Slotted Drive, M4-0.7, 8mm Length (Pack of 10) Reviews
Stainless Steel 18-8 Machine Screw, Vented Cheese Head, Slotted Drive, M4-0.7, 8mm Length (Pack of 10) Feature
- Machine Screws are often used with nuts or driven into tapped holes
- General Purpose Stainless Steel suitable where formability and cost are important considerations
- Cheese head permits greater grip and driving power
- Driven by a flat-bladed driver
- Coarse threads are better for brittle materials, and will assemble and disassemble more quickly than fine threads
Stainless steels are used for their corrosion resistance, high-temperature strength, scaling resistance, and low-temperature toughness. These properties account for their extremely wide use in practically every industry. Austenitic Stainless Steels are alloys of iron and carbon that contain between 16% and 30% Chromium, a maximum of 0.15% carbon, along with Nickel (or Manganese), and other alloying elements. The chromium, which helps develop a passive surface oxide film, provides corrosion resistance in stainless steels. Austenitic Stainless Steels are designated by a 3 digit SAE Stainless Steel Grade beginning with the number 3 (e.g. 304, 316). Another common naming convention for Austenitic Stainless Steels are 18/8, 18/10, 18/0, etc. where the 18 refers to the % of Chromium and 8 to % of Nickel contained in the material.
Stainless Steel 18-8 denotes 18% chromium and 8% nickel. Stainless Steel 18-8 can be formed and welded. Stainless Steel 18-8 is typically non-magnetic, though the material can become slightly magnetic when cold worked (cold working refers to altering the physical properties of the material without the use of temperature).
Featuring a thick cylindrical head, cheese head style fasteners allow deeper grooves for driving, allowing greater driving force. Common applications for slotted screws include woodworking, although the drive style is not designed to be used with power drivers. Vented fasteners have been drilled through their entire length to eliminate the possibility of virtual leaks caused by the trapped volume of air at the bottom of blind tapped holes.
A threaded fastener's size name includes information about the major external diameter (in millimeters), followed by the thread pitch (millimeters per thread), which indicates if it is coarse or fine. Coarse threads are better when working with brittle materials; they are sturdier and are easier to thread and unthread compared to fine. Coarse threading also allows for thicker coatings and platings.
